Baroid Filter Press

Overview

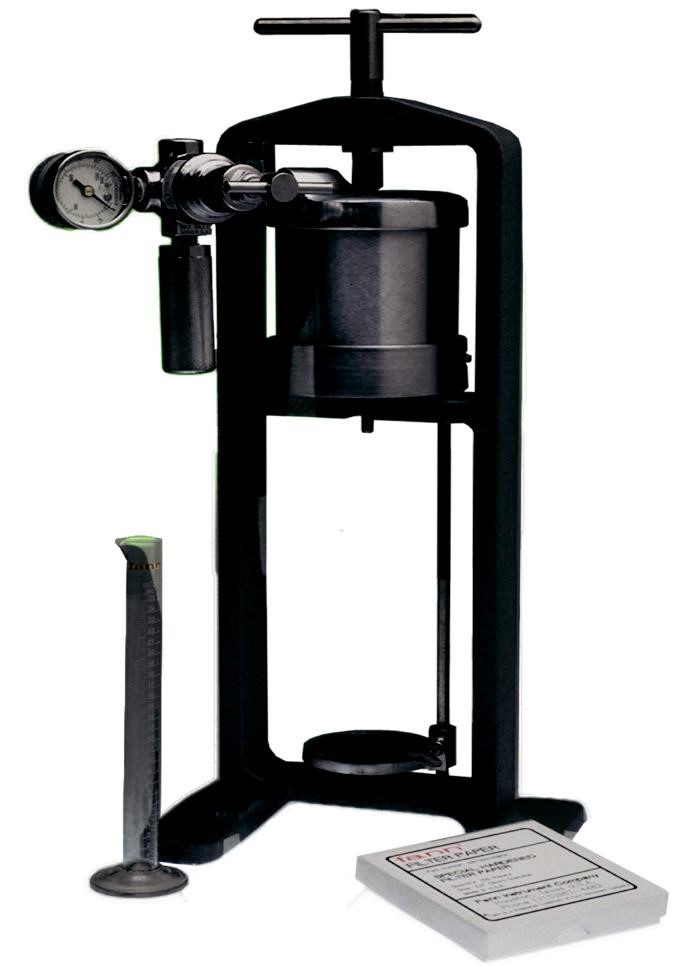

Filter Press API (LPLT)
LPLT Filter Press (API)The most effective means of determining the filtration properties of a variety slurries

Details

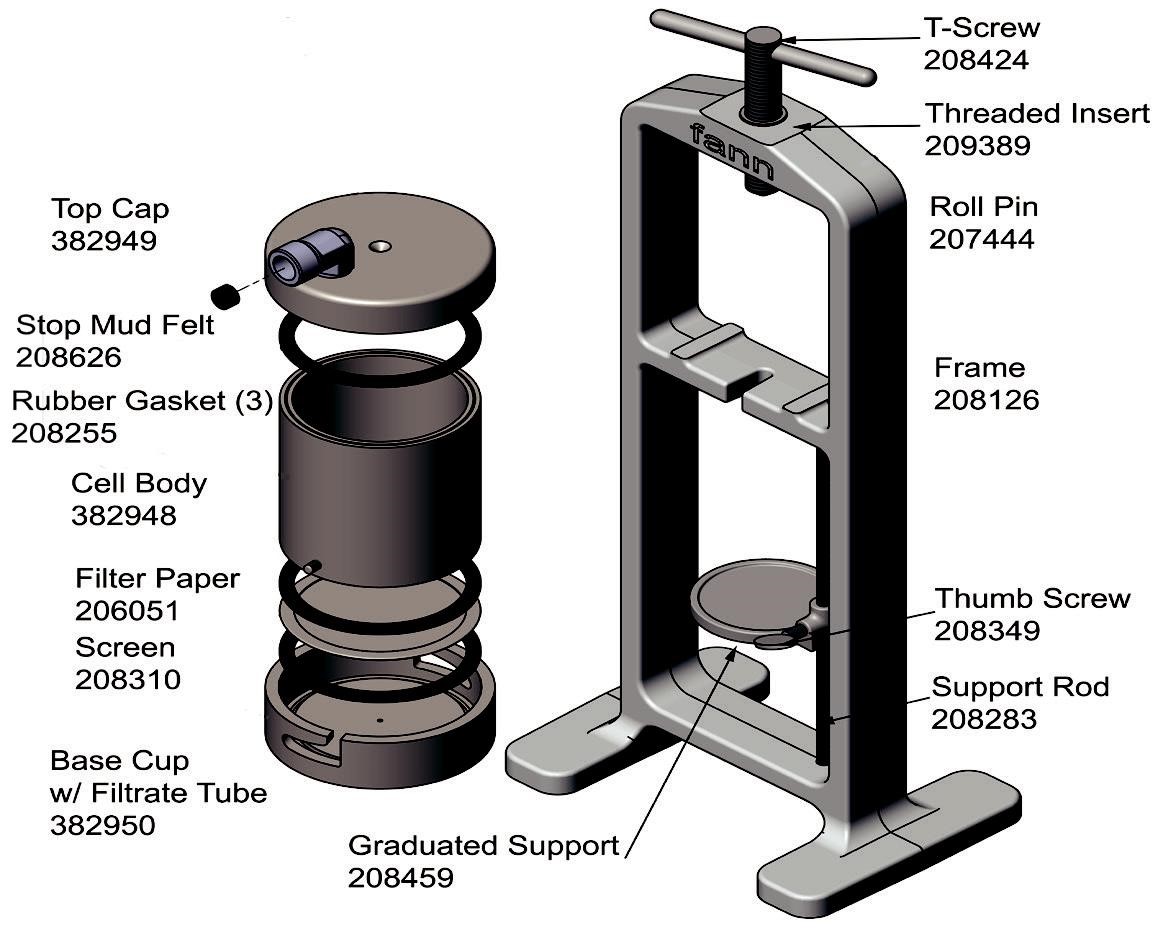

The Series 300 API Low Pressure Low Temperature (LPLT) Filter Press consists of:
sample reservoir mounted in a frame,
pressure source,
Filter papers,
graduated cylinder for receiving and measuring filtrate.

The basic unit has a cell assembly constructed of Stainless Steel and includes the required screen and gaskets.

Application
Measuring filtration behavior and wall-cake building characteristics of a mud is essential
to drilling fluid control and treatment. The characteristics of filtrate, such as oil, water,
or emulsion content are also important. The types and quantities of solids in the fluid
and their physical and chemical interactions affect these characteristics. Temperature
and pressure affect the physical and chemical interactions. Performing tests at both low
pressure/low temperature and high pressure/high temperature is necessary, and these
testing conditions require different equipment and techniques.

Specifications
The basic filter press has a cell assembly constructed of stainless steel and includes
the required screens and gaskets.
Working pressure is 100 psig and the filtering area is 7.1 sq in

There are various models available that will operate from a compressed air source or Sparklets CO2 bulbs (please note that these should be obtained locally)

Product Code

LPLT Filter Press Assemblies

Part No. 207173 Filter Press w/ Air Hose includes:

207127 — Basic Filter Press

207929 — Air Hose, 3 ft

208653 — Bleeder Valve


Part No. 207174 Filter Press w/ Regulator includes:
207127 — Basic Filter Press
207929 — Air Hose, 3 ft
102177087 — Regulator Assembly

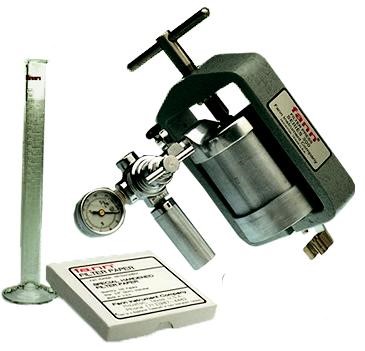

Part No. 207224 Filter Press w/ CO2 Pressure Assembly includes:
207127 — Basic Filter Press
208647 — CO2 Pressure Assembly

Part No. 207503 Wall Mount Filter Press w/ CO2
Pressure Assembly includes:
205868 — Graduated Cylinder, 25 ml
206051 — Filter Paper, 100/Box
207391 — Wall Mount Filter Press
208647 — CO2 Pressure Assembly


Part No. 207223 Filter Press w/ Nitrogen Regulator includes:
207127 — Basic Filter Press
207929 — Air Hose, 3 ft
208652 — Nitrogen Regulator
208653 — Bleeder Valve

Part No. 207290 Dead-Weight Hydraulic Filter Press includes:
207127 — Basic Filter Press
208594 — Dead-Weight Hydraulic Assembly
